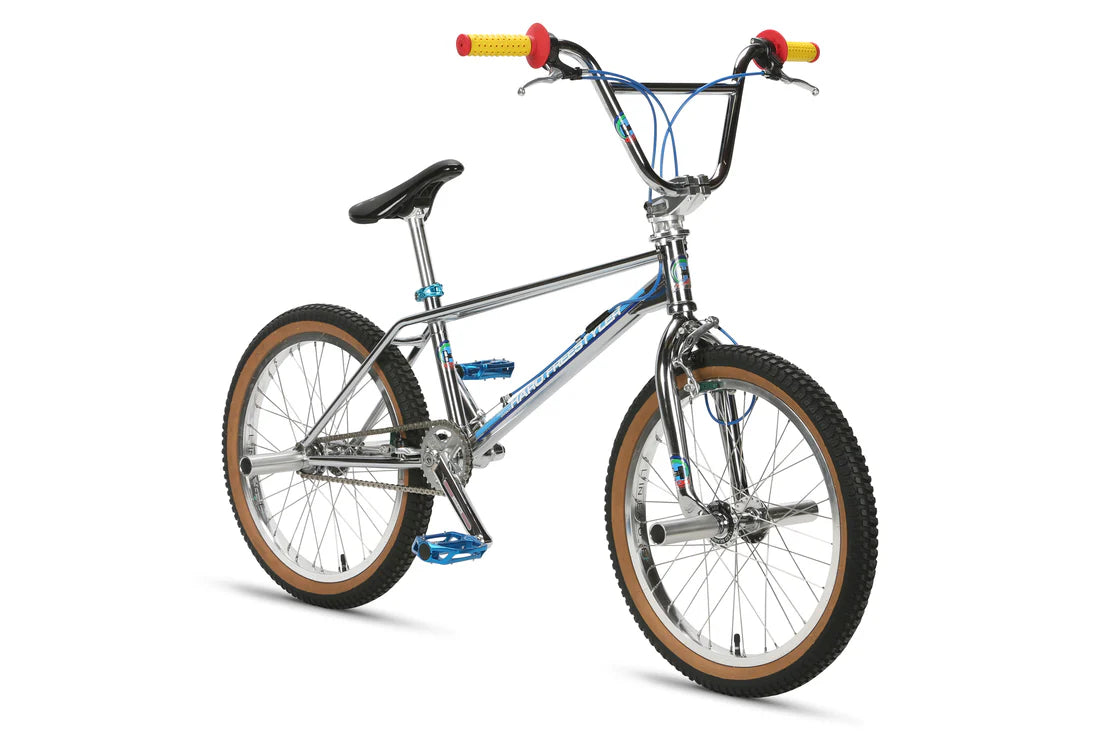

Bob Haro 40th Anniversary Freestyler

Bob Haro 40th Anniversary Freestyler

$1,999.99 USD
$1,999.99 USD
Sale Sold out
Weaving DNA from the past with modern BMX technology, the 40th Anniversary Haro Freestyler is an early 80s dream living in the present. Masterfully created to retain its original look, with right now features like an hourglass mid BB and integrated head tube that maintains the classic cup look, but stays tight and spins smoothly. Forks are made of fully heat-treated and butted chromoly tubing, as are the lineage bars. Genuine Oakley B1-B grips sit next to Dia-Compe Tech 77 levers. The cranks take flight with 3-piece tubular chromoly construction with a 48 spline/19mm spindle. The BOB cross alloy sprocket looks the part and puts the Lineage wheels in motion. Front and rear Dia-Compe Hombre brakes keep it all under control. The legend rolls on...

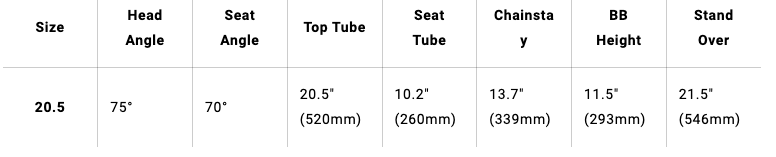

Size 20.5

FEATURES

  • 100% chromoly Lineage Freestyler frame with twin top tube, Mid BB shell, integrated head tube and Lineage cast dropouts with integrated chain tensioners
  • 100% heat treated chromoly Lineage fork with CNC threaded steer tube, investment cast drop-outs and 990 brake mounts with internal brake cable routing

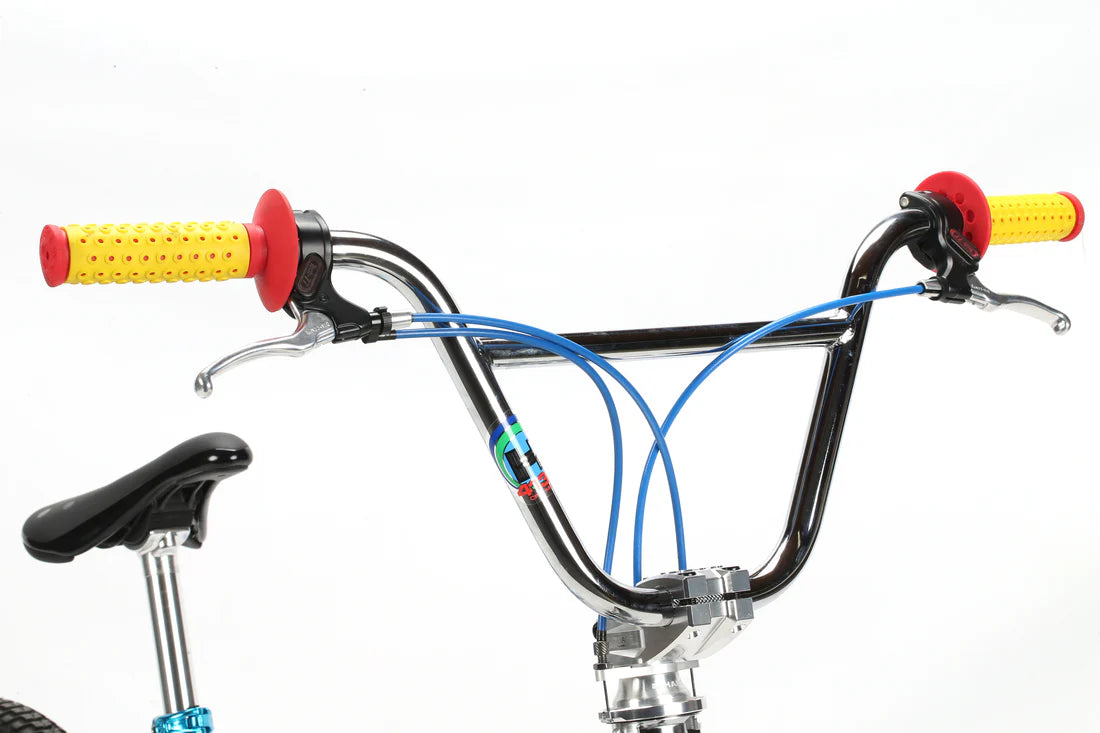

  • 100% heat treated and butted chromoly Lineage bars 8.5" with Haro Lineage CNC alloy top load stem
  • Lineage heat treated 3-piece alloy 165mm cranks with Bob Haro Lineage 28T CNC alloy bolt drive sprocket and sealed Mid BB
  • Fully sealed 36H wheels with Lineage high flange hubs and double-wall hi polished alloy rims
  • Haro Snakebite tires 20 x 2.125" front and rear

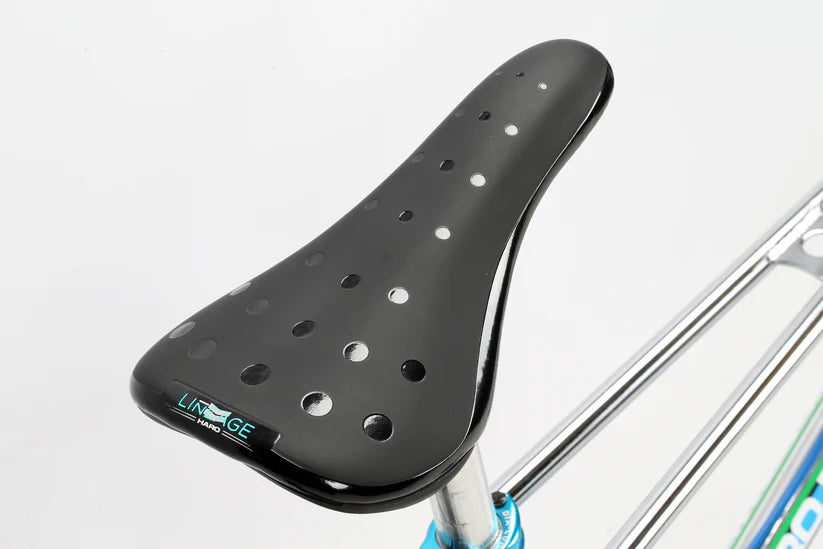

  • Haro Lineage padded stealth Pivotal seat with alloy Lineage Pivotal fluted post
  • Oakley B1B Grips, just like Bob Haro rode in 1982

FRAMESET

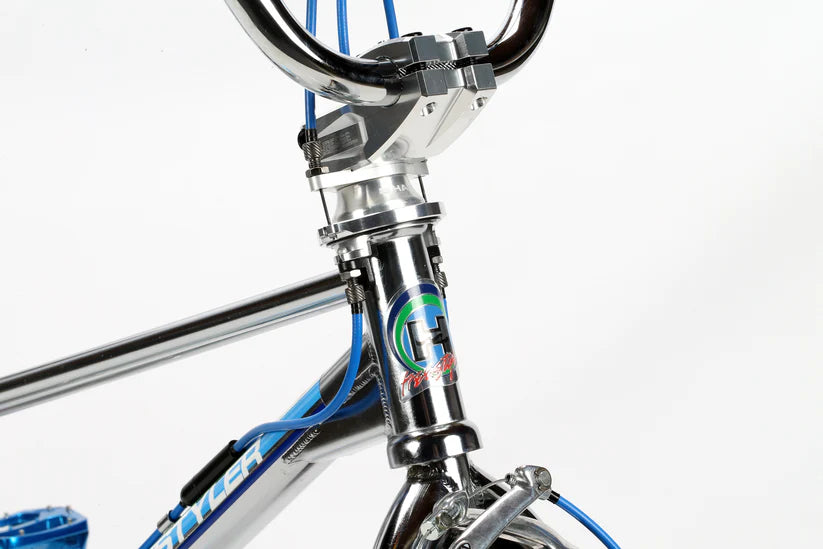

FrameHaro Lineage Freestyler frame. Full chromoly construction. Twin top tubes. Gusseted down tube. 20.5" top tube length. Integrated head tube. Hourglass mid BB. Welded brake mounts.ForkHaro Lineage Freestyler full chromoly fork with welded 990 mounts and internal cable routing. Tapered legs. Invest cast 3/8" dropouts. 33mm offset.ColorsChrome

DRIVETRAIN

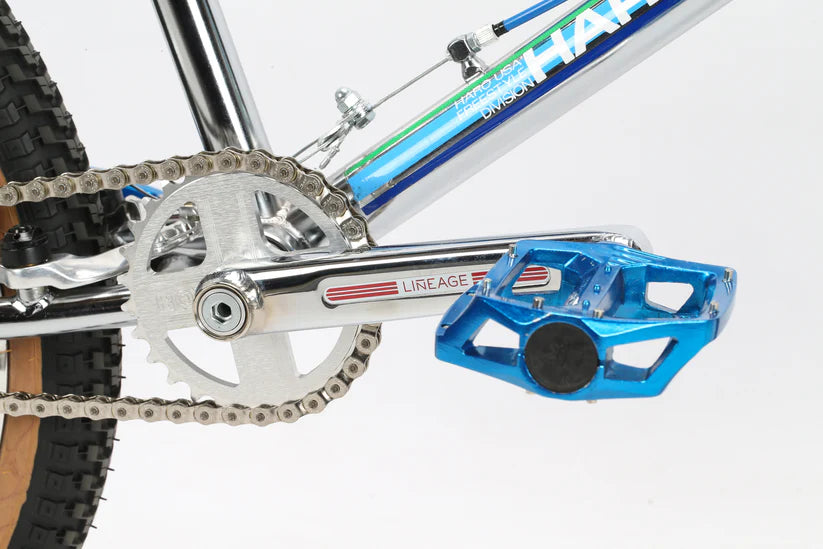

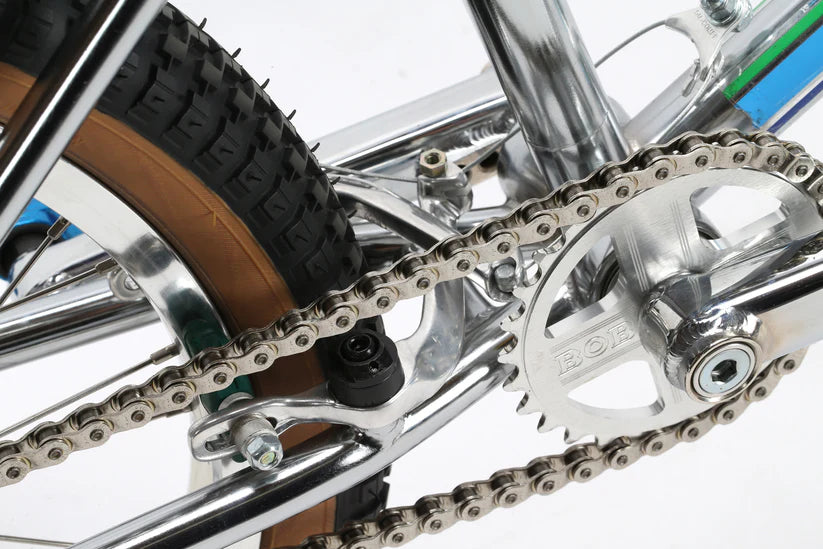

CranksHaro Fusion cranks (bolt drive interface). 165mm; 19mm 48-spline spindle; heat treated 4130 chromoly. RSD/LSD compatible.Bottom BracketSealed mid BB.SprocketHaro BOB Lineage "cross" sprocket; CNC bolt drive sprocket; 5mm thick. 28T.Gearing28/9PedalsHaro Fusion "DX" style. Alloy bodies. Steel pins. Chromoly axle.ChainKMC K1SL Narrow Silver Super Lite 1/8" width.

WHEELS

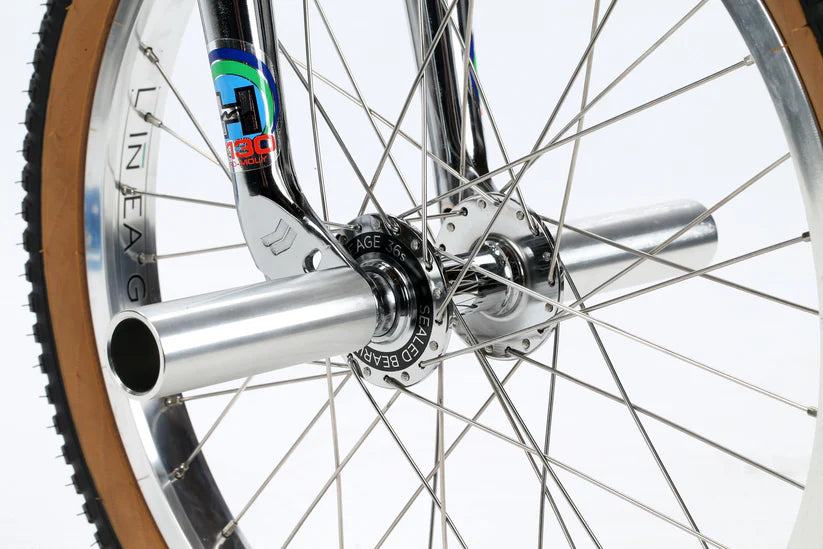

TiresSnakebite 20 x 2.125" front and rear. 60 max PSI.Front HubLineage high flange 36h alloy hub body. Sealed bearings. 3/8" chromoly male axle. Chrome plated hardware.Rear HubLineage high flange hub alloy hub body. Sealed 9T cassette driver. 14mm chromoly male axle. Chrome plated hardware.RimsLineage 36h alloy rims. Double-wall. Welded seams.

BRAKING SYSTEM

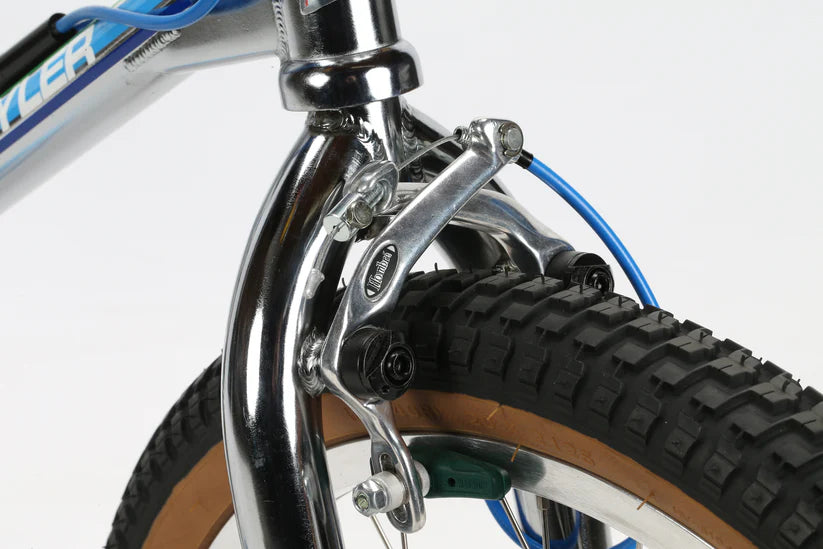

BrakeDia-Compe FS996 Hombre U-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt partsBrake LeverDia-Compe Tech-77 levers, right and left side. Cold-forged aluminum lever with hinged clamp.RotorTeflon bearing Gyro. CNC-machined 6061 aluminum.

OTHER COMPONENTS

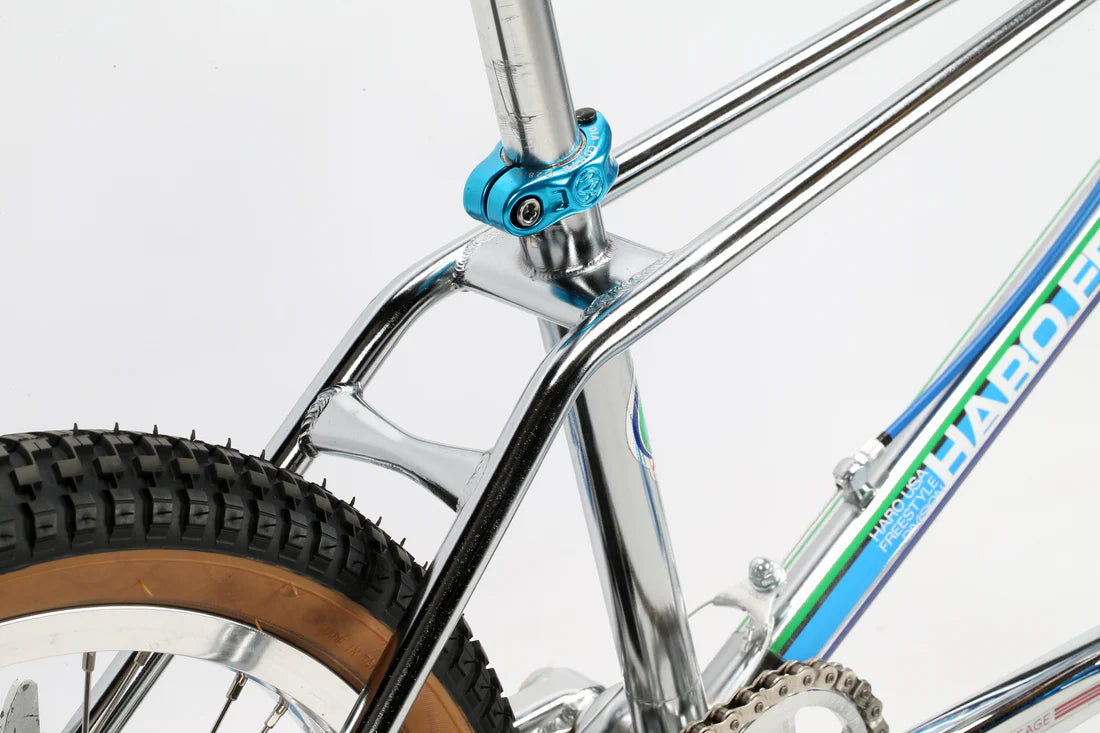

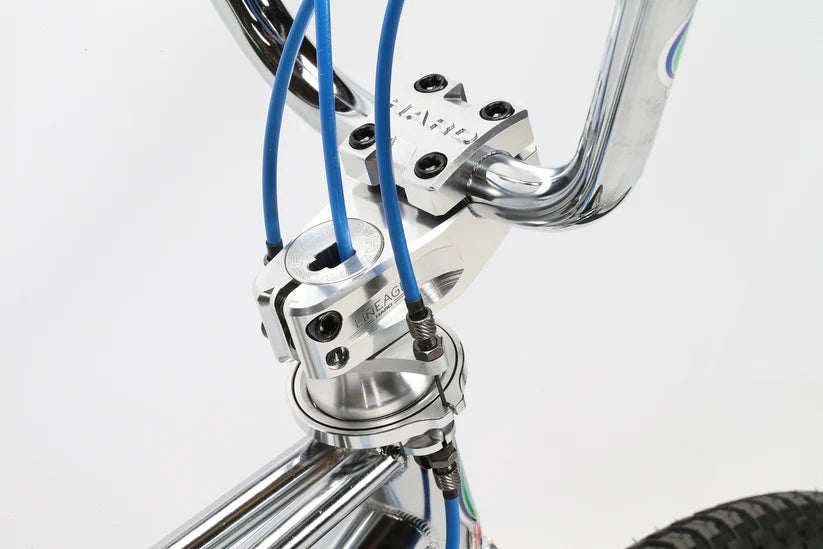

GripsOakley B1B grip. 145mm length x 29mm diameter. 50mm OD flange.HandlebarLineage bar. 8.5" rise. 100% heat treated, multi-butted chromoly.StemHaro Lineage top load stem; T6 alloy; cold forged with CNC detail. 45mm reach.HeadsetSealed Integrated, 1 1/8".SeatHaro Lineage Slim stealth pivotal seat.Seat PostHaro stealth pivotal seat post; 25.4 x 300mm.Seat Post ClampDia-Compe MX hinged clamp. 6061 alloy.Pegs6061 alloy pegs. 34mm OD. 110mm length. Four (4) included.
