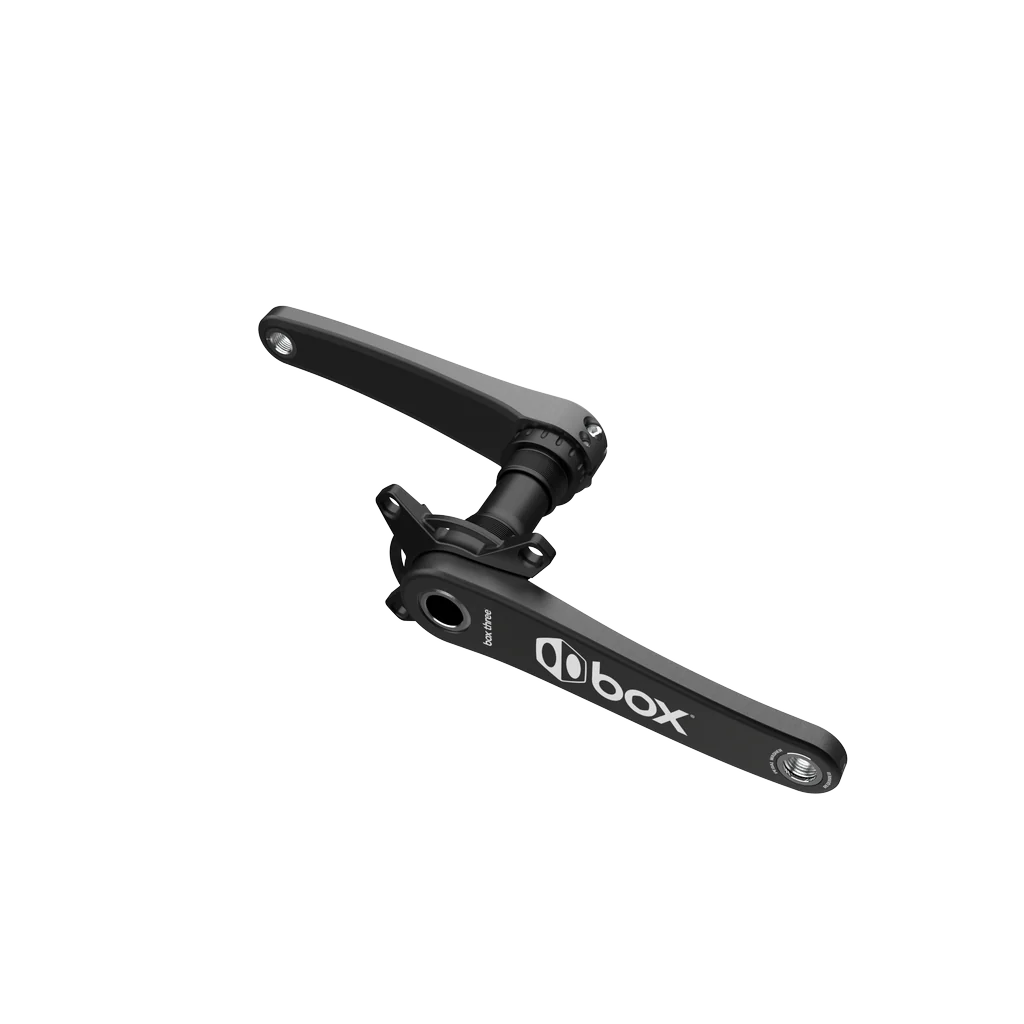

Box Three Hollow-Forged Crankset

Box Three Hollow-Forged Crankset

Regular price $309.99 USD
Regular price Sale price $309.99 USD
Sale Sold out

The Box Three Crankset features a hollow-forged 2-piece design with an oversized bottom bracket interface. The 24mm spindle is pressed into the drive-side crank arm for durability and easy installation. The non-drive side crank arm features a 2-bolt pinch system for added strength. Our unique 4-bolt 104 BCD spider features a flex-resistant ring for optimum performance.


Box Three Cranks feature steel pedal inserts that require pedal washers and externally sealed bearing BSA bottom brackets, both provided in the box.

    Weight Limit: 115kg (253 lbs)

    Hollow Forged Design
    Dual Pinch Bolts for Even Clamping Force
    Spider with Flex-Resistant Ring.

    Material:
    • Arms: 6061-T6 Aluminum
    • Spindle: Chromoly Steel
    Process:
    • Arms: Hollow-Forged & CNC
    • Spindle: CNC Turned
    Finish: Anodized w/Laser-Etched Graphics
    Chainline: 44.5mm
    Q Factor: 168m
    Spindle: 24mm Included
    Bottom Bracket: BSA 1.37 Included
    Torque Specs: 12-14 Nm
    Compatibility:
    • Chainring: 4-bolt 104 BCD
    Size & Weight:
    • 170mm / 1,010g/35.6oz
    • 175mm / 1,020g/35.9oz
    • 177.5mm / 1,020g/35.9oz
    • 180mm / 1,010g/35.6oz
